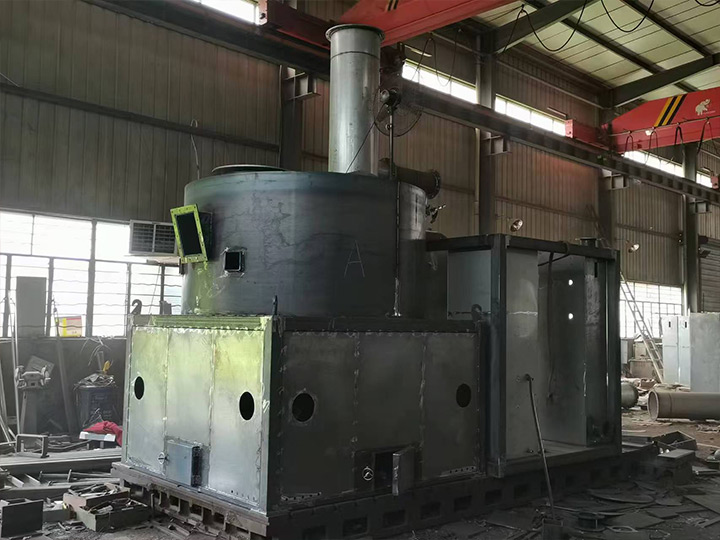

Magnetic waste pyrolysis furnace

Magnetic waste thermal decomposition technology

Mr. Li Shengran discovered magnetic oxygen enrichment technology in 2009.
The air passed through the patented magnetic sieve of the fireprint low-temperature magnetic thermal decomposition furnace becomes a tool to promote carbon pyrolysis, completely solving the dioxin standard and heavy metal volatilization of high-temperature fuel incineration.

No fuel is required, saving a lot of fuel for the world, contributing to carbon emission indicators, and using trace amounts of oxygen for the carbon pyrolysis process.

After 16 years of research and experimentation, the fireprint thermomagnetic garbage low-temperature decomposition device is based on energy conservation, increases the life of the equipment, treats harmful substances in steam with the lowest energy consumption, and forms a patented furnace and steam treatment system integration.

Low temperature magnetocaloric decomposition device technical parameter

Capacity	5m3	10 m3
Diameter of reactor, m	2.15	2.15
lnstallation size	8.3 x 3 x 4.5	11x3x6.5
Handling capacity, Garbage with 20-50% moisture	0.8-1.5 TPD	1.5-2.5 TPD
Handling capacity, Shredded garbage and dried with moisture 20-50%	1-2 TPD	1.5 -3TPD
Handling capacity, Only dry waste like paper, plastics, cloth, rubber mix	Yes	Yes
Incinerator temp, C	380	380
Flue gas temperature, C	30—90℃	30—90℃
Flue gas quantity, m3/day
Power consumed/day, KW	48	60
Water consumed /day, Lts Moisture10- 20%,	10-40KG	20-60KG
Water consumed /day, Lts moisture 25-50%,	No	No
Liquid vinegar produced/day, Lts moisture 20%	No	No
Tar produced every day	3-5KG
Liquid vinegar produced/day, Lts moisture 25-50%	30-60KG	40-110KG
Empty weight, T	5.8	8
Waste reduction rate (China operation record)	1/200-1/400 6m³ site 500-1000 kg/day	30 kg of glass and metal, 34 kg of negative ion ash
Components supplied	Garbage elevator Reactor Water pump for spraying Plasma purification unit Oil water splitter Water injection cooling pump Flue gas disinfection Activated carbon sponge High temperature and high pressure cleaning unit
Material of construction	Q235B,Spray molding, thermal insulation cotton	Q235B,Spray molding, thermal insulation cotton
Chimney height, m	9	13
Life of the unit	15 years	15 years
Production time	25-50/day	30-60/day
