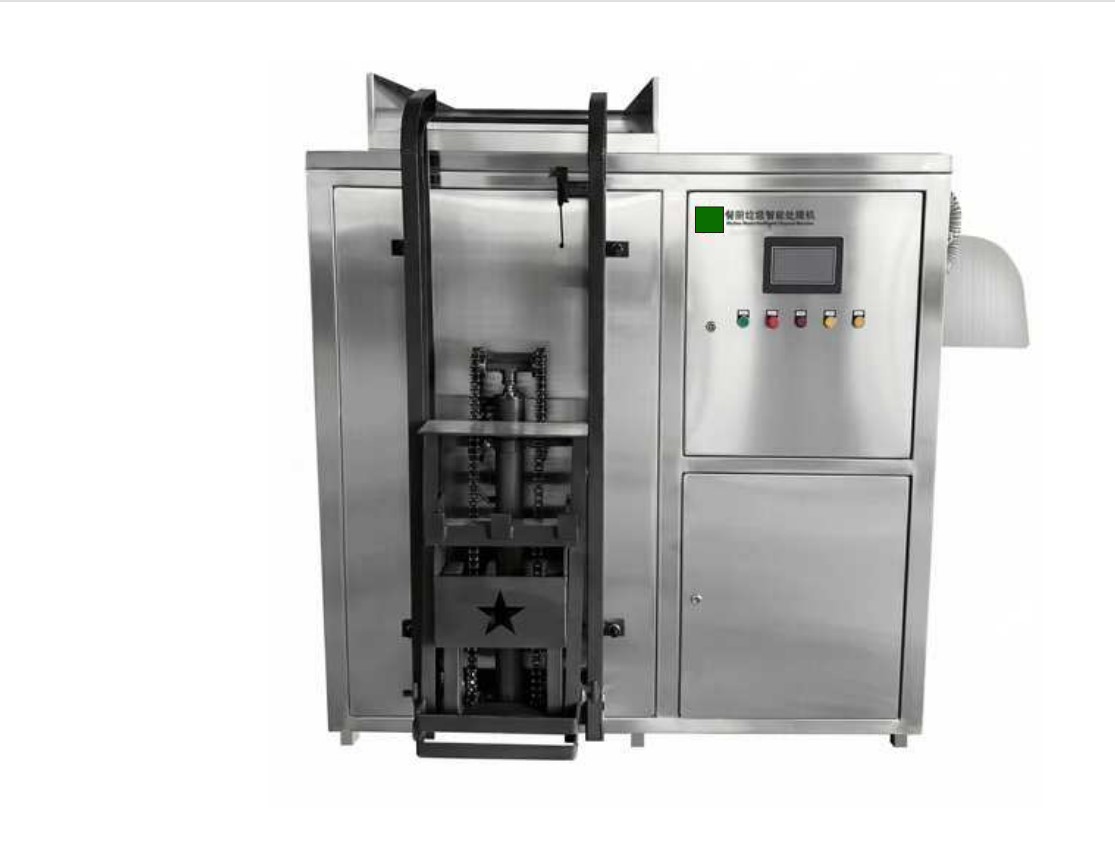

FP-5T Large-scale Three-Phase Food Waste Separator (3 phase decanter centrifuge Daily processing capacity 5T)
Product Overview
The FP 5T Intelligent Food Waste Processor is a special environmental protection device realizing three phase separation of oil, water and residue and on site reduction for food waste. It is equipped with a 120 liter elevator, shredding function, feeding in spray unit, automatic oil water separation, automatic oil collection, automatic water filling, automatic water drainage and automatic residue discharge, together with intelligent heating and full oil alarm reminder.
Scope of Application
This model is mainly used for food waste treatment in canteens, small and medium size catering establishments, factories, companies, schools, public institutions and other sites.
Product Features
- Shredding function with anti‑stall control; automatic reverse rotation when hard objects are encountered; shredding stops once the cover is opened
- Automatic residue removal and automatic water replenishment
- Constant‑temperature heating control for tank body
- Anti‑dry‑burn sensor; heating stops automatically during sewage discharging
- Grease sensor with automatic alarm function
- Conical tank bottom, supporting automatic periodic sewage discharge and automatic backwashing for thorough sludge removal
- Three‑stage oil interception, solid‑liquid separation and automatic oil discharge
- High grease separation rate
Operating Precautions
1 The equipment adopts three‑phase five‑wire power supply of 380VAC, 32A. Correct earthing connection is required.
2 Do not touch transmission components and shredding cutter heads when the equipment is in operation.
3 Connect to a matched 4‑point water supply tap.
4 Ensure the outlet of sewage discharge pipeline is lower than the sludge drain valve to guarantee smooth drainage.
5 Turn on the power supply in advance to preheat grease inside the equipment before use; during operation.
6 Press the start switch, and the equipment will perform automatic residue removal and automatic water replenishment.
7 Two oil‑discharge modes are optional: automatic oil discharge and manual oil discharge. For automatic mode, oil discharge will stop automatically when the oil drum is full, oil level is low or preset oil‑discharge cycles are completed. For manual mode, click the oil‑discharge button to open the oil‑discharge valve automatically. Oil‑discharge process finishes until the alarm sound disappears.
8 Form a good habit of cleaning the machine after each use to avoid bacterial growth. Cut off the power switch before cleaning to prevent personal injury.
9 The equipment is equipped with a built‑in self‑cleaning system. Manual cleaning for oil‑separation tank, oil‑water sensor and water‑level sensor shall be conducted every month.

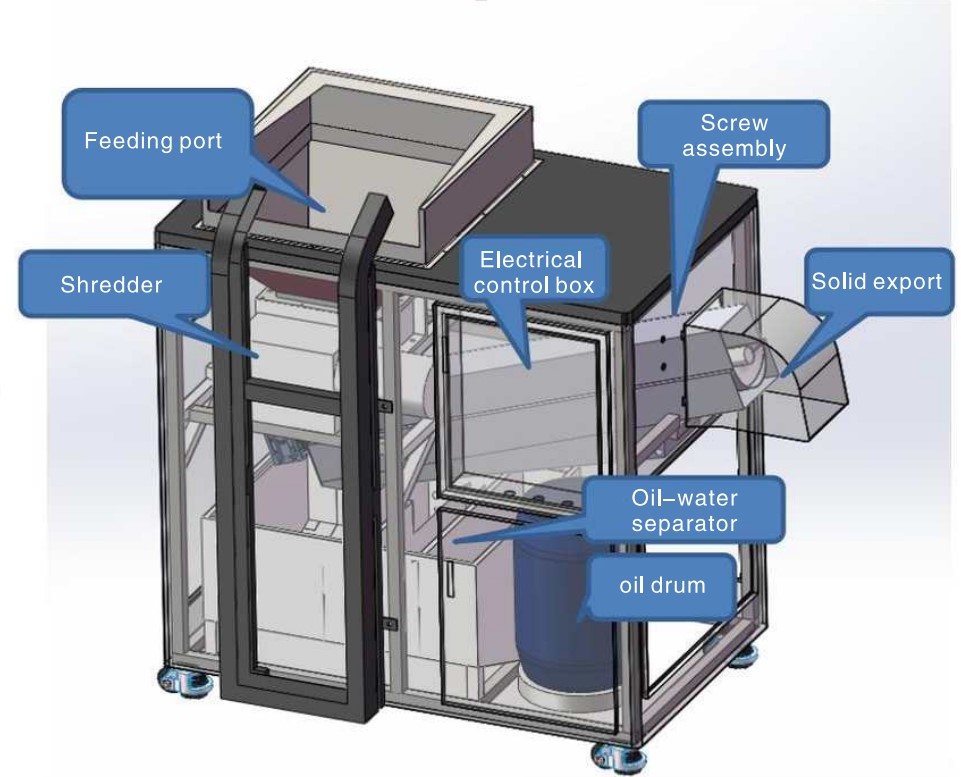

Product Function Location

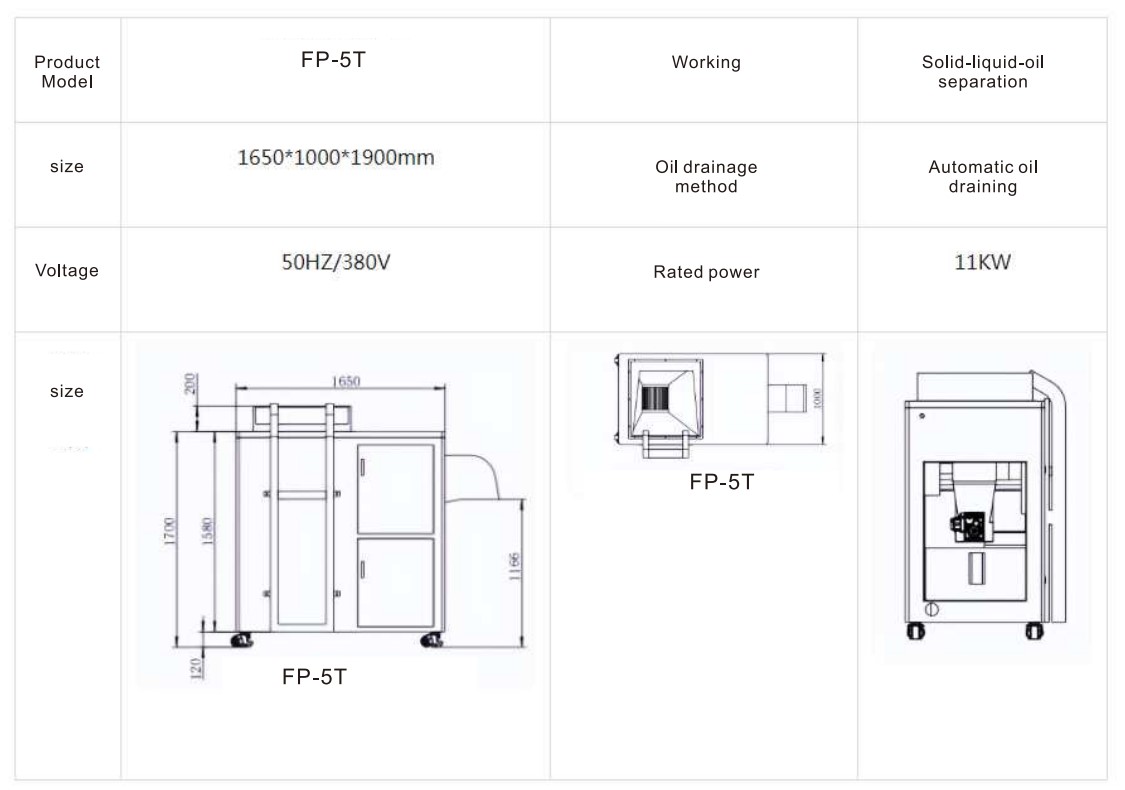

Equipment parameters

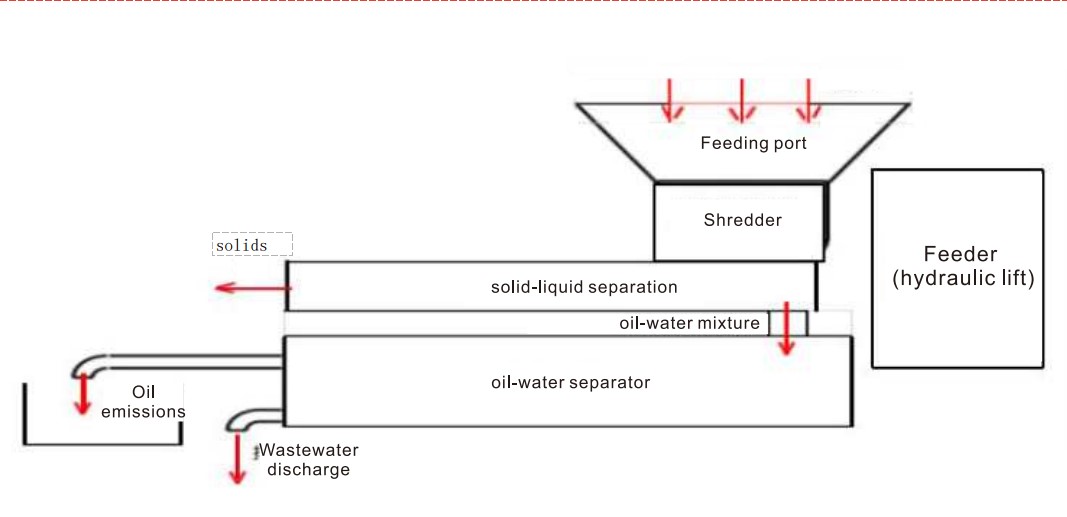

Working principle diagram
For customized processing volumes, please contact us. Thank you.
